Aluminium window and door system · A110

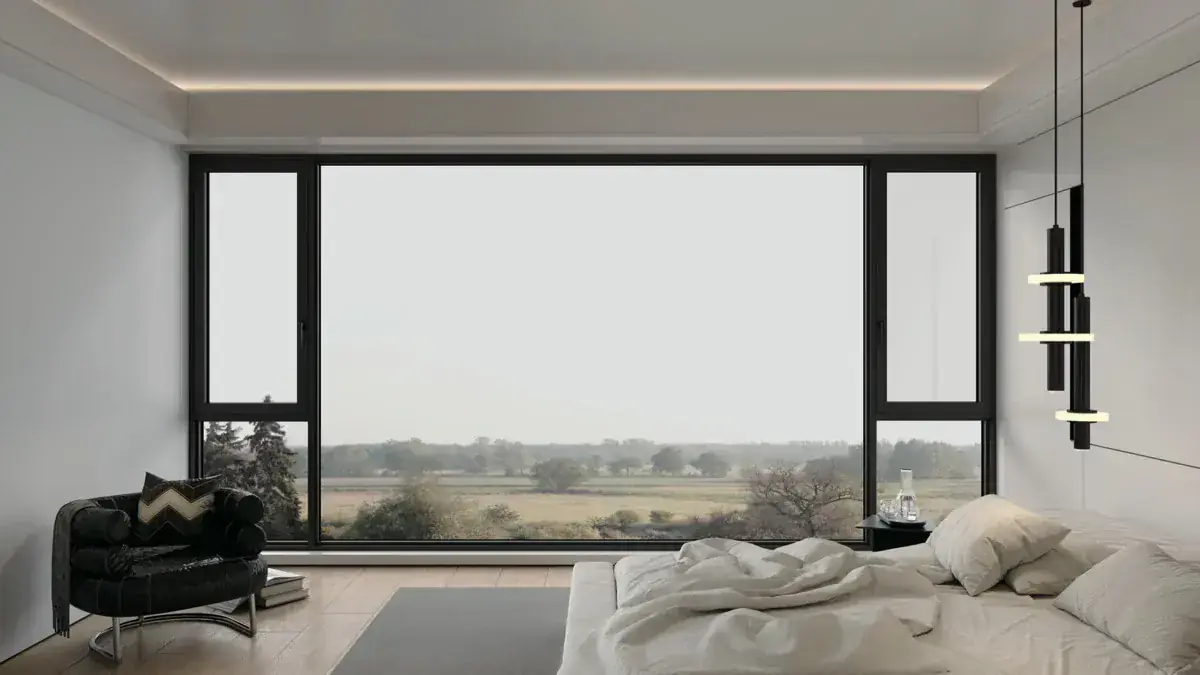

A110 110mm thermal break aluminium casement window system.
A110 uses a 110.5 mm thermally broken frame for projects that need more construction depth than A65. Its reference construction combines a continuous inner gasket, PA66GF25 barriers, EPDM seals and a drained glazing rebate. Glazing make-up and whole-window performance are selected and verified for each project.
Construction and configuration
- 6063-T5 aluminum alloy with PPG powder coating
- Continuous inner gasket in the reference build
- Nominal frame depth of 110.5 mm
- PA66GF25 polyamide thermal barriers
- EPDM gasket set
- 304 stainless-steel hardware and optional insect screen
- External glazing gasket with internal sealant line
- Drained and pressure-equalised glazing rebate
- Glazing package released against the project schedule
Technical specifications.
| Frame Depth | 110.5 mm |
|---|---|
| Catalogue Interface Dimension | ≤ 120 mm |
| Aluminium Alloy | 6063-T5 |
| Thermal Barrier | PA66GF25 |
| Gaskets | EPDM |
| Hardware Material | 304 Stainless Steel |
Catalogue dimensions describe the reference configuration. Confirm the infill, hardware, opening limits and released bill of materials before ordering.
Product FAQ
Technical questions.
Reference answers for early system selection. Final dimensions, components and performance are fixed in the project-specific technical package.
What is the frame depth of the A110 Casement Window?
A110 Casement Window has a listed frame depth of 110.5 mm. Confirm the infill, sash or leaf limits and hardware against the current technical data sheet and opening schedule.
Which materials are listed for the A110 Casement Window?
The reference build lists 6063-T5 aluminium, PA66GF25 polyamide thermal barriers and EPDM gaskets. The released bill of materials remains project-specific.
Can a fabricator order the A110 Casement Window as a production kit?
Yes. PINDÉ checks the opening schedule, opening type, glazing, hardware and destination requirements. Supply can include a system kit, machined profiles or a glass-free CKD kit.
