Aluminium window and door system · A65

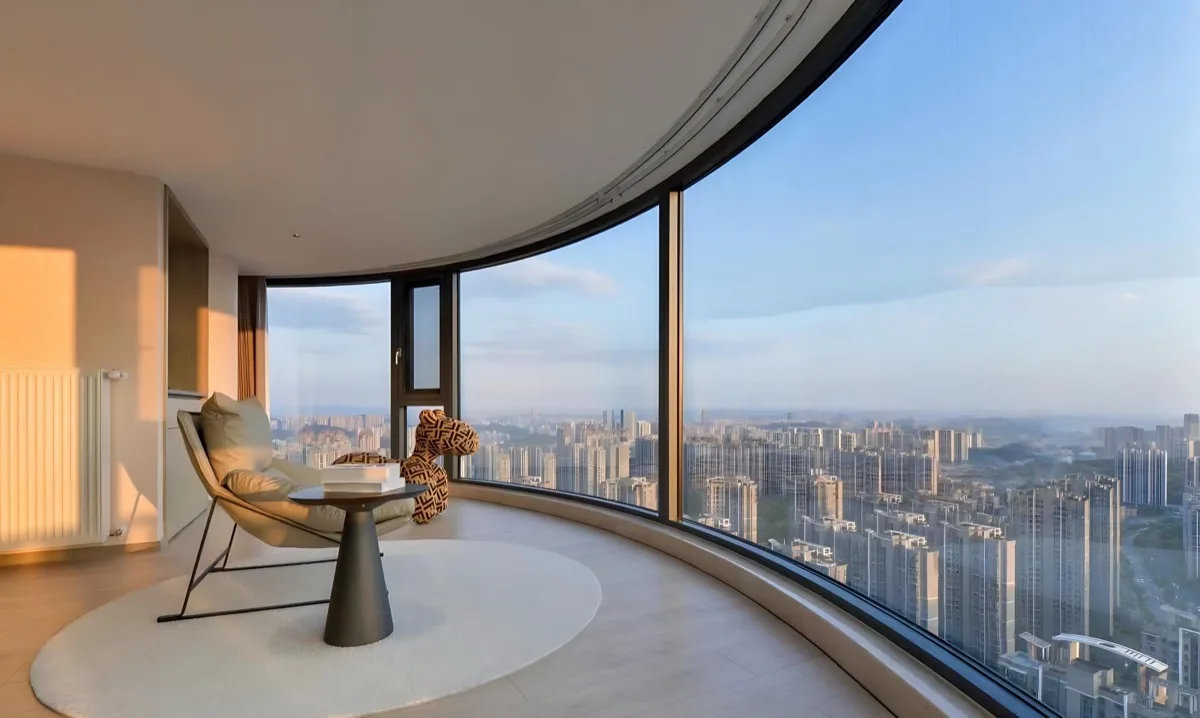

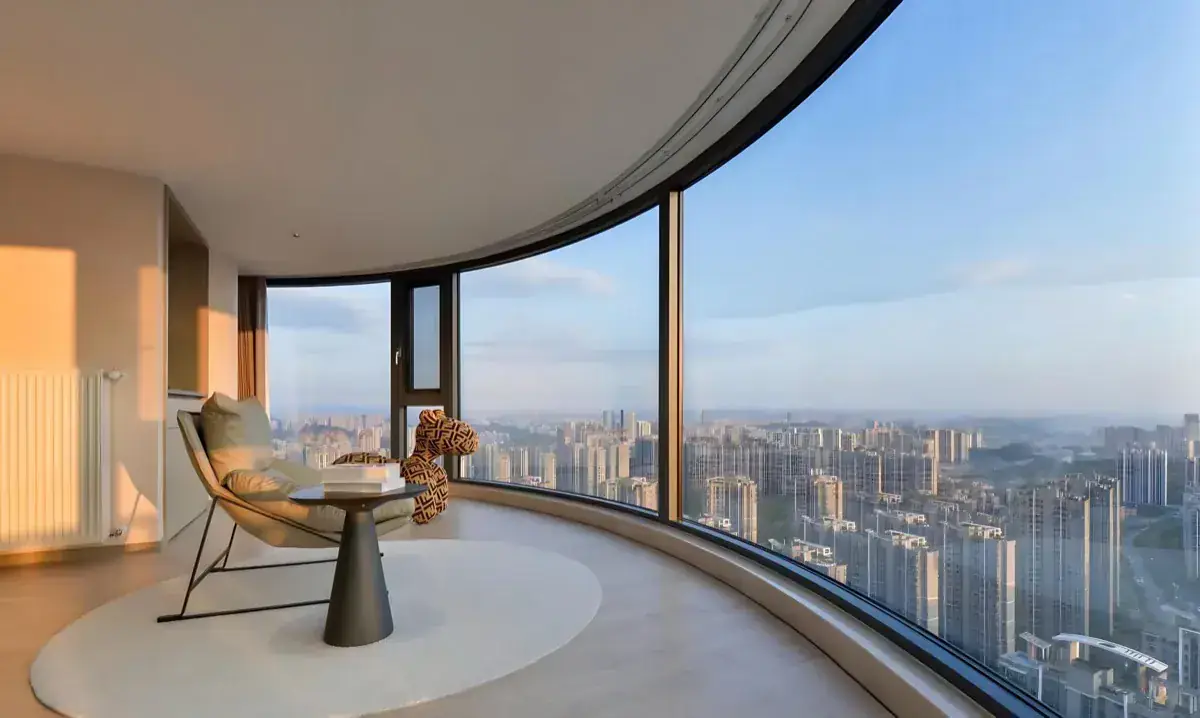

A65 thermally broken aluminium casement window system.
A65 is a 65 mm thermally broken casement system for inward-opening, outward-opening and fixed units. The reference build combines 6063-T5 aluminium, PA66GF25 polyamide barriers, three EPDM sealing levels and drained glazing rebates. It is the compact system in the PINDÉ exterior-window range.
Construction and configuration
- 6063-T5 aluminum alloy with PPG powder coating
- PA66GF25 thermal break technology
- Three sealing levels with EPDM gaskets
- Four-point hardware set in the reference configuration
- Curved units subject to drawing review
- Flush frame and sash faces
- Drained and pressure-equalised glazing rebate
- Inward-opening, outward-opening and fixed configurations
- Catalogue finishes: Modern Grey, Metal Coffee and Porcelain Black
Technical specifications.
| Frame Depth | 65 mm |
|---|---|
| Catalogue Interface Dimension | ≤ 75 mm |
| Aluminium Alloy | 6063-T5 |
| Thermal Barrier | PA66GF25 |
| Gaskets | EPDM |
| Hardware Material | 304 Stainless Steel |
Catalogue dimensions describe the reference configuration. Confirm the infill, hardware, opening limits and released bill of materials before ordering.
Product FAQ
Technical questions.
Reference answers for early system selection. Final dimensions, components and performance are fixed in the project-specific technical package.
What is the frame depth of the A65 Casement Window?
A65 Casement Window has a listed frame depth of 65 mm. Confirm the infill, sash or leaf limits and hardware against the current technical data sheet and opening schedule.
Which materials are listed for the A65 Casement Window?
The reference build lists 6063-T5 aluminium, PA66GF25 polyamide thermal barriers and EPDM gaskets. The released bill of materials remains project-specific.
Can a fabricator order the A65 Casement Window as a production kit?
Yes. PINDÉ checks the opening schedule, opening type, glazing, hardware and destination requirements. Supply can include a system kit, machined profiles or a glass-free CKD kit.
