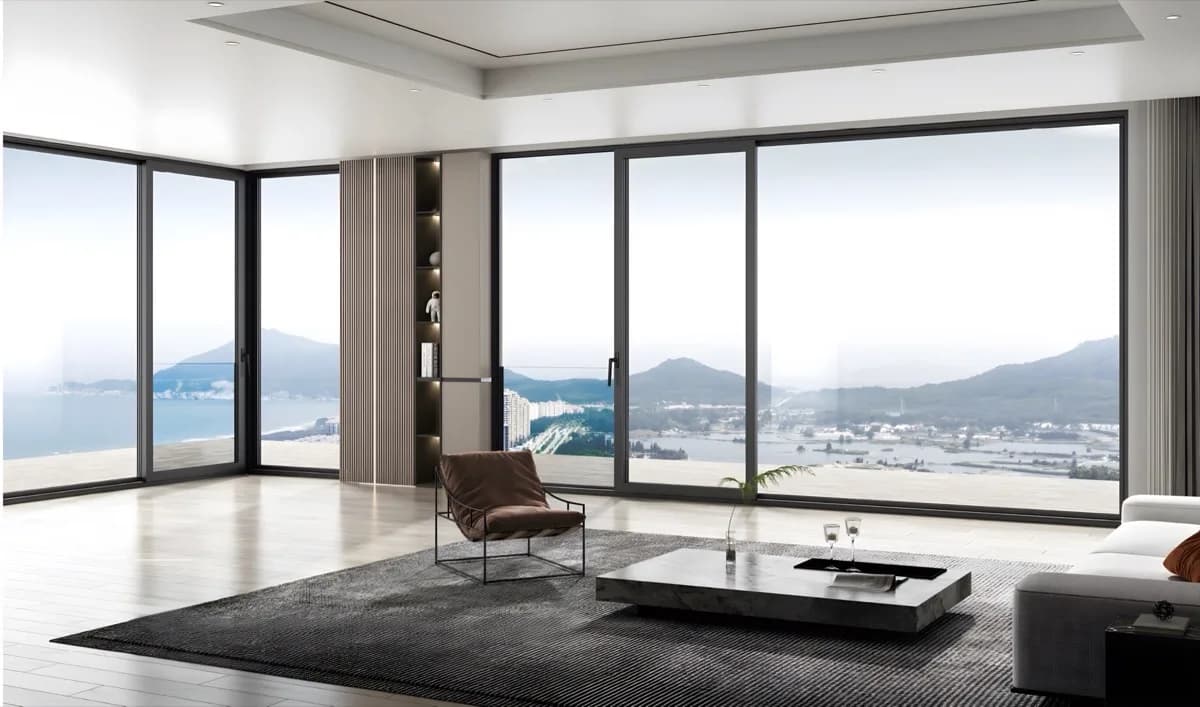

Aluminium window and door system · S132
S132 132mm thermally broken sliding window with compression sealing.
S132 is a 132 mm compression-seal window with a sash that closes flush into the frame and is drawn onto the gasket line. The mechanism is intended to combine a sliding motion with positive compression at the closed position. Guarding, screen type and operating hardware remain configuration choices.
Construction and configuration
- Compression at the closed sash perimeter
- Manual sliding-and-compression operation
- Optional glass guardrail for safety
- Optional roll-up or electric screen mesh
- 6063-T5 aluminum alloy with PPG powder coating
- Three sealing levels with EPDM gaskets
- PA66GF25 polyamide thermal barriers
- 304 stainless steel mesh screen
Technical specifications.
| Frame Depth | 132 mm |
|---|---|
| Catalogue Interface Dimension | ≤ 142 mm |
| Aluminium Alloy | 6063-T5 |
| Thermal Barrier | PA66GF25 |
| Gaskets | EPDM |
| Hardware Material | 304 Stainless Steel |
Catalogue dimensions describe the reference configuration. Confirm the infill, hardware, opening limits and released bill of materials before ordering.
Product FAQ
Technical questions.
Reference answers for early system selection. Final dimensions, components and performance are fixed in the project-specific technical package.
What is the frame depth of the S132 Compression-Seal Window?
S132 Compression-Seal Window has a listed frame depth of 132 mm. Confirm the infill, sash or leaf limits and hardware against the current technical data sheet and opening schedule.
Which materials are listed for the S132 Compression-Seal Window?
The reference build lists 6063-T5 aluminium, PA66GF25 polyamide thermal barriers and EPDM gaskets. The released bill of materials remains project-specific.
Can a fabricator order the S132 Compression-Seal Window as a production kit?
Yes. PINDÉ checks the opening schedule, opening type, glazing, hardware and destination requirements. Supply can include a system kit, machined profiles or a glass-free CKD kit.
