Aluminium window and door system · AP187

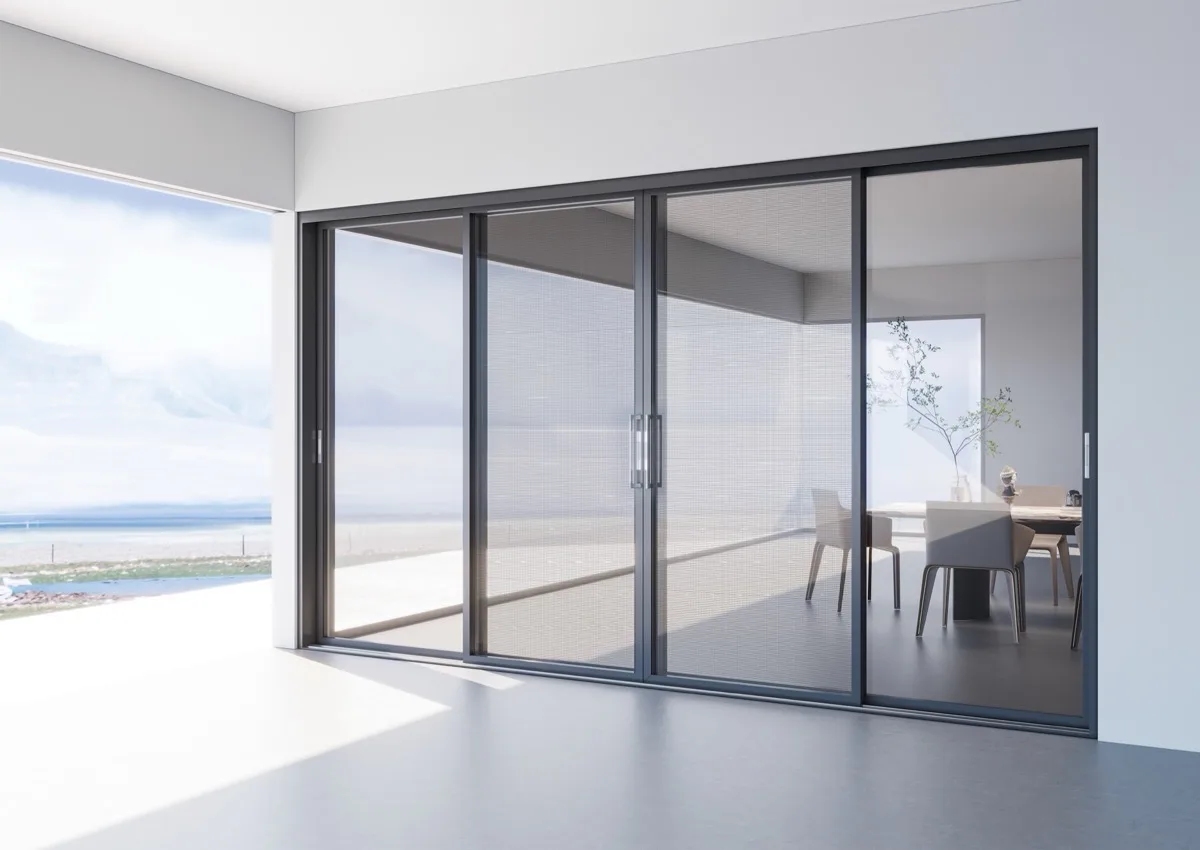

AP187 50 slim-profile aluminium sliding door system.
AP187 50 is a thermally broken sliding-door system with a 156.8 mm frame and a 50 mm visible leaf profile in the reference section. High- and low-track details and two insect-screen options are available. Panel size, roller capacity, drainage and glazing are checked for each terrace or balcony opening.
Construction and configuration
- 50 mm visible leaf profile in the reference section
- Roller set selected for the calculated leaf mass
- Optional transparent or stainless-steel insect screen
- High-track and low-track sill details
- 6063-T5 aluminum alloy with PPG powder coating
- PA66GF25 polyamide thermal barriers
- EPDM foam gasket set
- Novabes roller system and Bao Ma lock
Technical specifications.
| Frame Depth | 156.8 mm |
|---|---|
| Catalogue Interface Dimension | ≤ 161 mm |
| Visible Leaf Width | 50 mm |
| Aluminium Alloy | 6063-T5 |
| Thermal Barrier | PA66GF25 |
| Hardware Material | 304 Stainless Steel |
Catalogue dimensions describe the reference configuration. Confirm the infill, hardware, opening limits and released bill of materials before ordering.
Product FAQ
Technical questions.
Reference answers for early system selection. Final dimensions, components and performance are fixed in the project-specific technical package.
What is the frame depth of the AP187 50 Sliding Door?
AP187 50 Sliding Door has a listed frame depth of 156.8 mm. Confirm the infill, sash or leaf limits and hardware against the current technical data sheet and opening schedule.
Which materials are listed for the AP187 50 Sliding Door?
The reference build lists 6063-T5 aluminium, PA66GF25 polyamide thermal barriers and EPDM gaskets. The released bill of materials remains project-specific.
Can a fabricator order the AP187 50 Sliding Door as a production kit?
Yes. PINDÉ checks the opening schedule, opening type, glazing, hardware and destination requirements. Supply can include a system kit, machined profiles or a glass-free CKD kit.
