Aluminium window and door system · S175

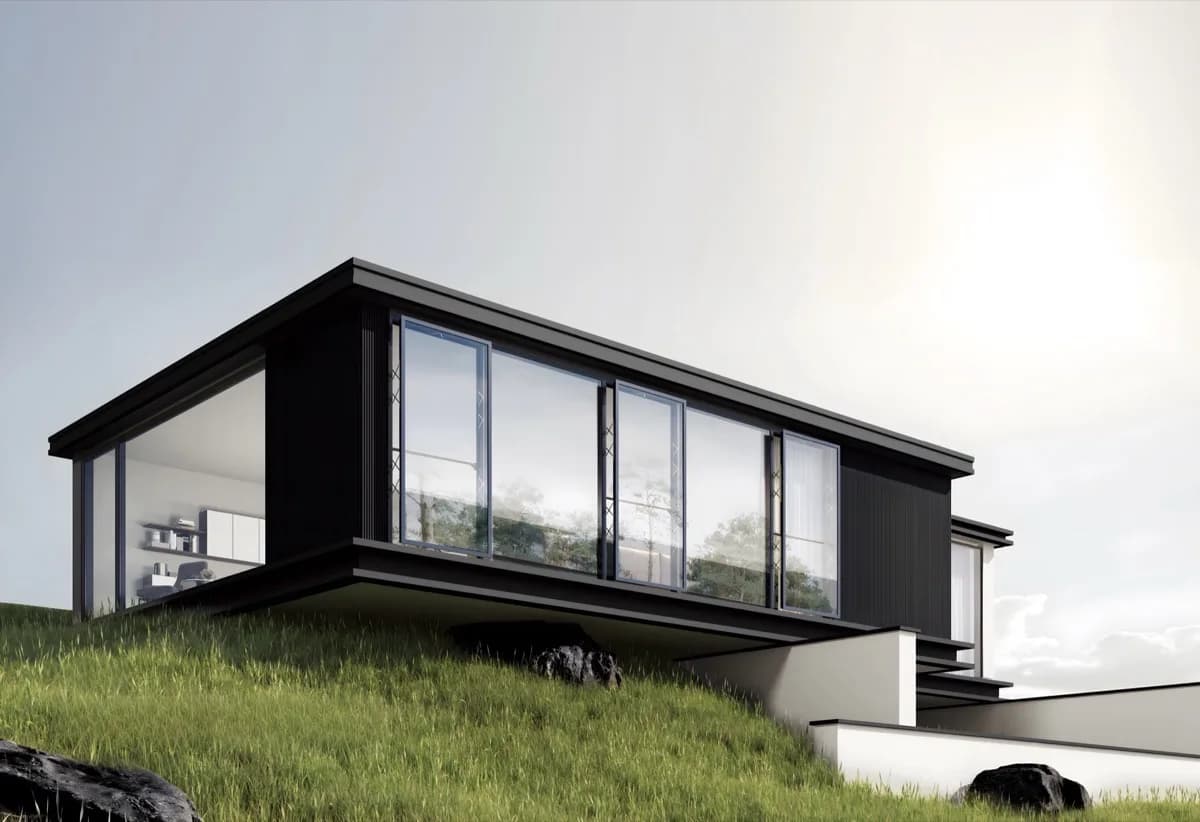

S175 175mm aluminium parallel-projecting window system.
S175 is a 175 mm parallel-projecting window. The hardware moves the sash outward while keeping it broadly parallel to the frame, with a catalogue travel of 250 mm. Manual and motorised drives are available; wind load, opening restrictors and controls are selected for the project location.
Construction and configuration
- Parallel-projecting hardware mechanism
- Catalogue sash travel of 250 mm
- Ventilation gap around the sash perimeter
- Manual or motorised operation
- 6063-T5 aluminum alloy with PPG powder coating
- PA66GF25 polyamide thermal barriers
- Three sealing levels with EPDM gaskets
Technical specifications.
| Frame Depth | 175 mm |
|---|---|
| Catalogue Sash Travel | 250 mm |
| Aluminium Alloy | 6063-T5 |
| Thermal Barrier | PA66GF25 |
| Gaskets | EPDM |
| Hardware Material | 304 Stainless Steel |
Catalogue dimensions describe the reference configuration. Confirm the infill, hardware, opening limits and released bill of materials before ordering.
Product FAQ
Technical questions.
Reference answers for early system selection. Final dimensions, components and performance are fixed in the project-specific technical package.
What is the frame depth of the S175 Parallel-Projecting Window?
S175 Parallel-Projecting Window has a listed frame depth of 175 mm. Confirm the infill, sash or leaf limits and hardware against the current technical data sheet and opening schedule.
Which materials are listed for the S175 Parallel-Projecting Window?
The reference build lists 6063-T5 aluminium, PA66GF25 polyamide thermal barriers and EPDM gaskets. The released bill of materials remains project-specific.
Can a fabricator order the S175 Parallel-Projecting Window as a production kit?
Yes. PINDÉ checks the opening schedule, opening type, glazing, hardware and destination requirements. Supply can include a system kit, machined profiles or a glass-free CKD kit.
