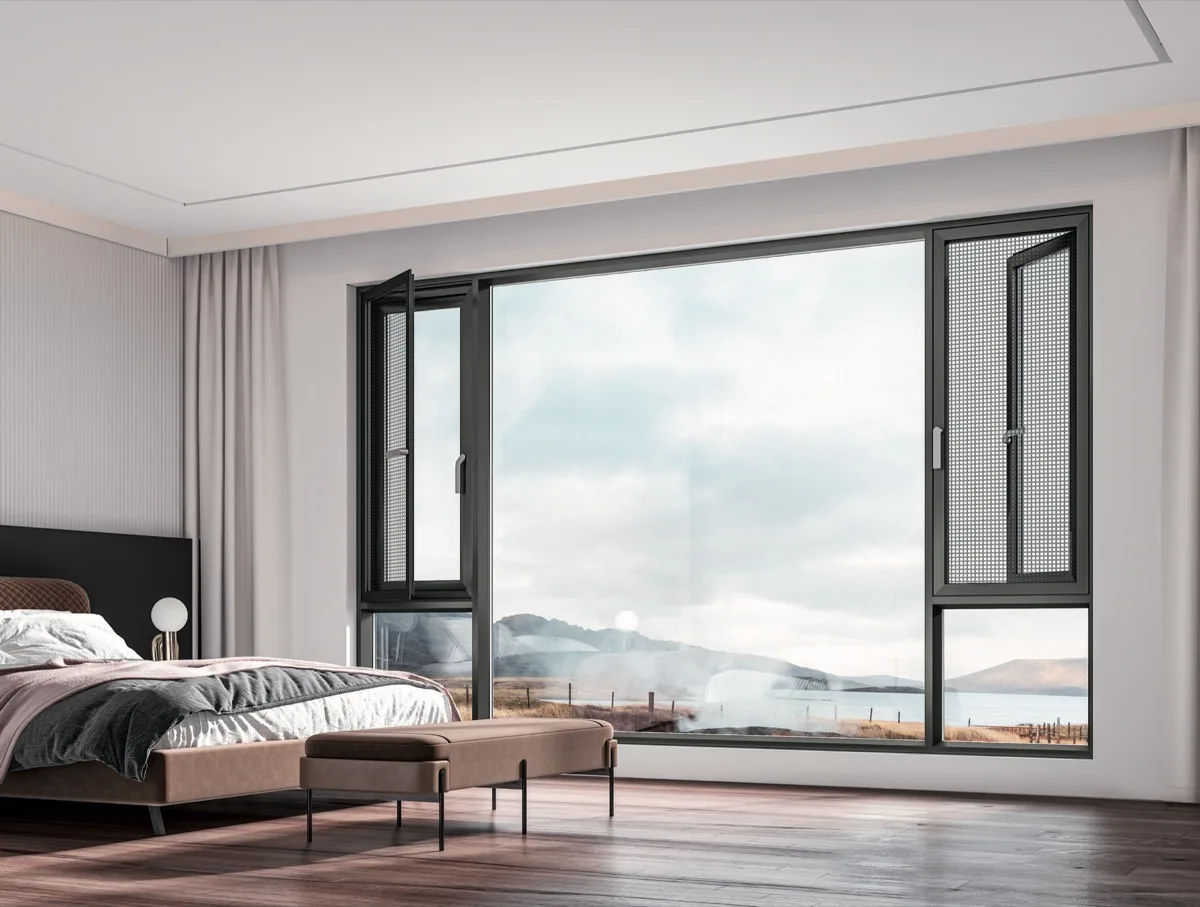

Aluminium window and door system · A120
A120 120mm thermally broken aluminium casement window system.
A120 has the greatest frame depth in the PINDÉ aluminium casement range. The 120.6 mm frame uses a 35.3 mm PA66GF25 thermal barrier, a continuous inner gasket and three sealing levels. It is intended for project-specific triple-glazed insulating glass units; Uw must be confirmed for the released unit size, glazing and hardware set.
Construction and configuration
- 6063-T5 aluminum alloy construction
- 35.3 mm PA66GF25 polyamide thermal barrier
- Continuous inner gasket in the reference build
- Reference detailing for a two-chamber insulating glass unit
- Three sealing levels with EPDM gaskets
- 304 stainless-steel hardware and optional insect screen
- Glazing package released against the project schedule
- Catalogue finishes: grey, brown, black and white
Technical specifications.
| Frame Depth | 120.6 mm |
|---|---|
| Catalogue Interface Dimension | ≤ 130 mm |
| Thermal-Barrier Width | 35.3 mm |
| Aluminium Alloy | 6063-T5 |
| Thermal Barrier | PA66GF25 |
| Hardware Material | 304 Stainless Steel |
Catalogue dimensions describe the reference configuration. Confirm the infill, hardware, opening limits and released bill of materials before ordering.
Product FAQ
Technical questions.
Reference answers for early system selection. Final dimensions, components and performance are fixed in the project-specific technical package.
What is the frame depth of the A120 Casement Window?
A120 Casement Window has a listed frame depth of 120.6 mm. Confirm the infill, sash or leaf limits and hardware against the current technical data sheet and opening schedule.
Which materials are listed for the A120 Casement Window?
The reference build lists 6063-T5 aluminium, PA66GF25 polyamide thermal barriers and EPDM gaskets. The released bill of materials remains project-specific.
Can a fabricator order the A120 Casement Window as a production kit?
Yes. PINDÉ checks the opening schedule, opening type, glazing, hardware and destination requirements. Supply can include a system kit, machined profiles or a glass-free CKD kit.
