FRP family · aluminium-composite · PD95 series
A nominal 95mm aluminium-composite window platform with an 80mm insulated profile zone and a source-catalogue triple-glazing configuration. PD95 sits beside PD75 in PINDÉ's aluminium-composite category, adding a deeper, passive-performance-oriented option for projects that require a longer thermal path and documented whole-window references.
Thermal path
The wide thermal-break geometry separates the interior and exterior aluminium sections and lengthens the conductive heat-flow path. Final whole-window performance still depends on the verified frame build, spacers, glass, seals and installation node.
Glazing
The source catalogue pairs the system with 6Low-E + 16Ar + 6 + 16Ar + 6 glazing. Glass make-up, coatings, gas fill, edge system and panel dimensions must be respecified for each destination project.
Envelope
The supplied specimen table records Grade 9 wind resistance, Grade 8 airtightness, Grade 5 watertightness and 39dB acoustic insulation. These values belong to the identified catalogue configuration, not every PD95 build.
PD95 is grouped with PD75 because both use an aluminium-composite thermal-break architecture rather than a full-FRP frame. The supplied drawings identify an 80mm insulated profile zone and retain XMG95ES component codes for source traceability. The exact polymer or FRP formulation is not stated in the supplied sheets, so Ultra FRP Core material claims remain subject to BOM and material-certificate confirmation before release.
| Public series name | PD95 |
|---|---|
| Source identifiers | ES95 / XMG95ES component family |
| Construction | Thermally broken aluminium-composite frame |
| Nominal system depth | 95 mm; source frame sections list 95.5–95.8 mm |
| Thermal-break profile width | 80 mm |
| Aluminium profile wall | 1.8 mm |
| Catalogue frame Uf reference | Minimum 0.73 W/(m²·K), as stated in the source sheet |
| Catalogue glazing range | Ug 0.8–1.1 W/(m²·K), depending on configuration |
| Joinery statement | Seamless welded appearance stated by source; process qualification required |
| Supply route | Qualified system profiles or glass-free CKD package |

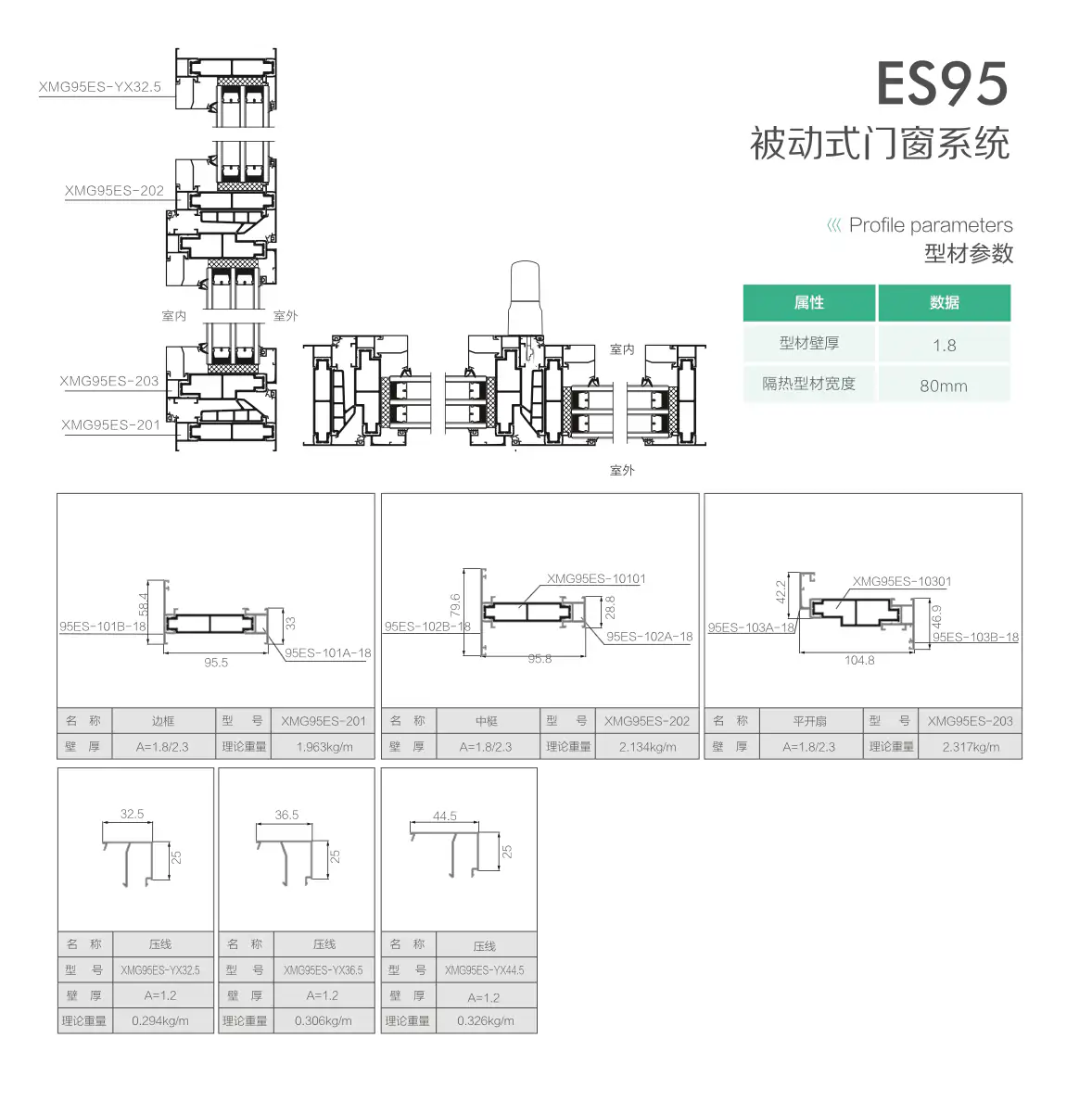

The supplied sections show the frame, mullion and flush-sash profiles, an 80mm thermal-break profile width and principal XMG95ES component references. The source identifiers remain visible for technical traceability; PD95 is the public series name used by PINDÉ.
The supplied catalogue records the following values for a 6Low-E + 16Ar + 6 + 16Ar + 6 specimen. They must be tied to the original test reports before quotation and must not be transferred to a different size, glass, hardware, fabrication process or test standard.
| Catalogue glazing | Thermal / grade | Wind | Air | Water | Acoustic |
|---|---|---|---|---|---|
| 6Low-E + 16Ar + 6 + 16Ar + 6 | 0.98 W/(m²·K) · Grade 10 | P3 ≥ 5.0 · Grade 9 | ±q1 ≤ 0.42; ±q2 ≤ 0.70 · Grade 8 | 350 Pa · Grade 5 | 39 dB · Grade 4 |

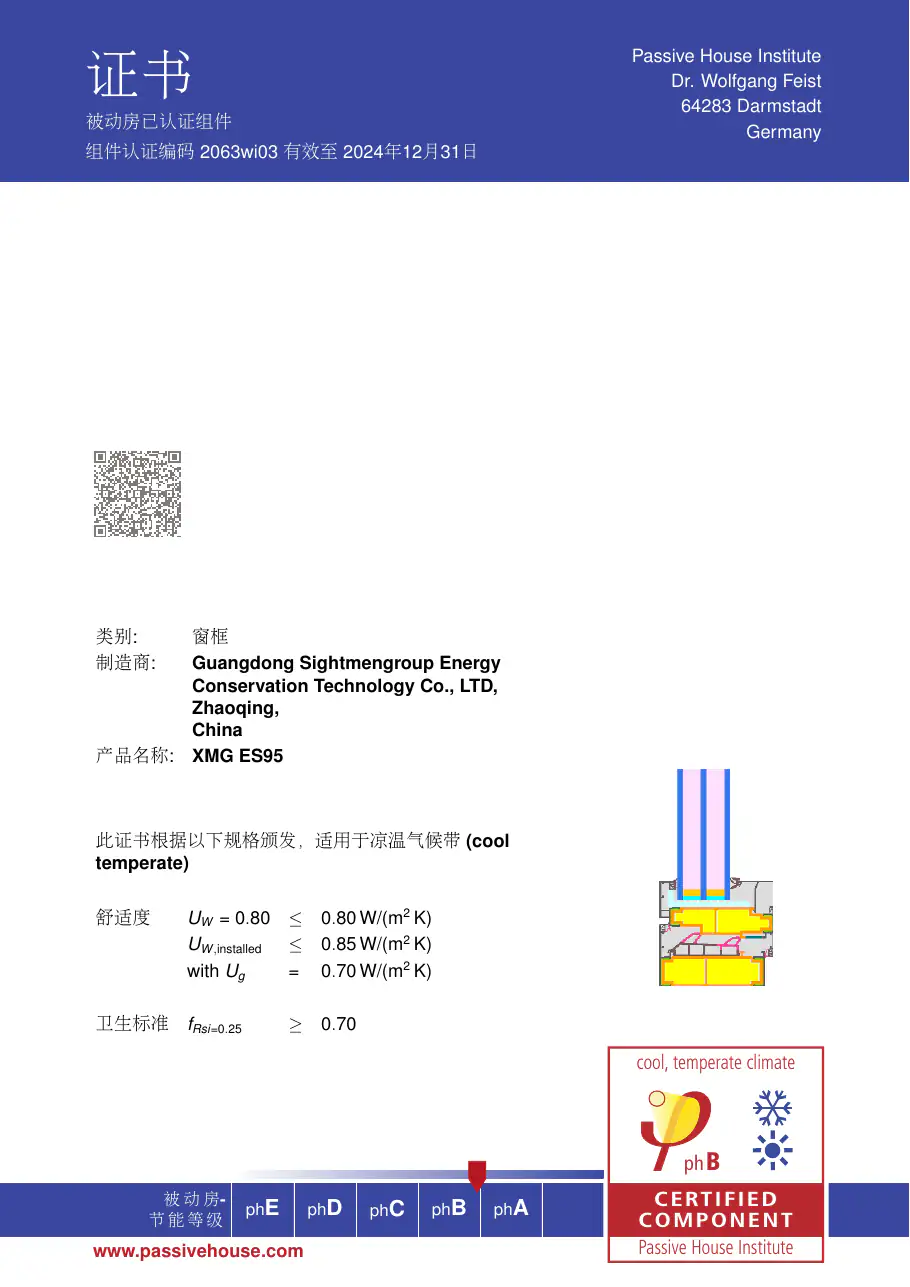

The supplied Passive House Institute document identifies the certified component as XMG ES95 from Guangdong Sightmengroup Energy Conservation Technology Co., LTD. It is retained here as historical evidence for the source system and is not presented as a current PD95 certificate.
Before any Passive House claim is used in a quotation, the renewed certificate, current database entry, tested BOM and the identity mapping between PD95 and XMG ES95 must all be verified.
Qualification gate: catalogue and historical certificate values apply only to the identified specimens and evidence scope. Final thermal, air, water, wind, acoustic, durability and certification claims require current reports for the ordered PD95 window and destination-market method.
