Семейство Aluminium · A110

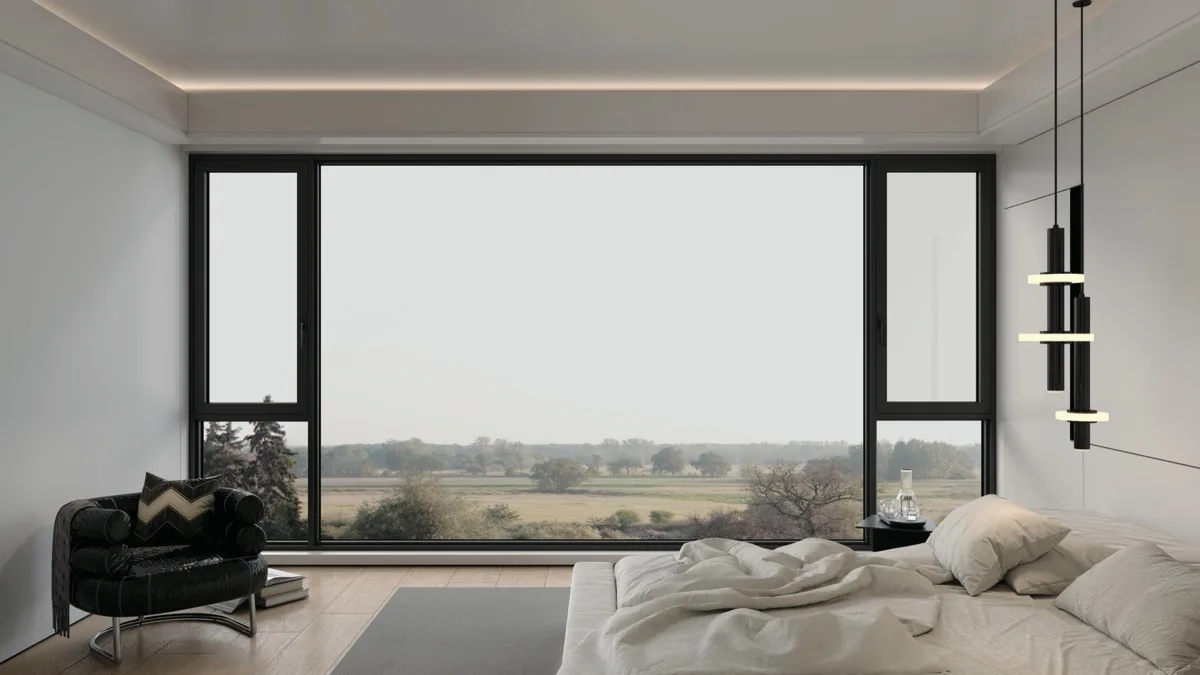

A110 Casement Window.
A high-performance casement window featuring a robust 110.5mm profile depth and integrated thermal break design. The deeper profile accommodates glazing up to 120mm, delivering superior thermal and acoustic insulation for demanding climates and energy-conscious projects.
Ключевые особенности
- 6063-T5 aluminum alloy with PPG powder coating
- Integrated full-window rubber strip for consistent seal quality
- Deep 109.3mm frame for enhanced insulation
- PA66GF25 thermal break strips
- New EPDM compound foam sealing strips
- 304 stainless steel hardware with insect screen
- Double-sided glass sealing with exterior strip / interior sealant
- Drain-type water discharge system
- Max glazing thickness up to 120mm
Технические характеристики.
| Profile Depth | 110.5 mm |
|---|---|
| Max Glass | ≤ 120 mm |
| Aluminum Alloy | 6063-T5 |
| Thermal Break | PA66GF25 |
| Seals | EPDM |
| Hardware | 304 Stainless Steel |
Характеристики являются справочными и зависят от конфигурации. До заказа запросите актуальный технический лист и BOM.
