Семейство Aluminium · AP187

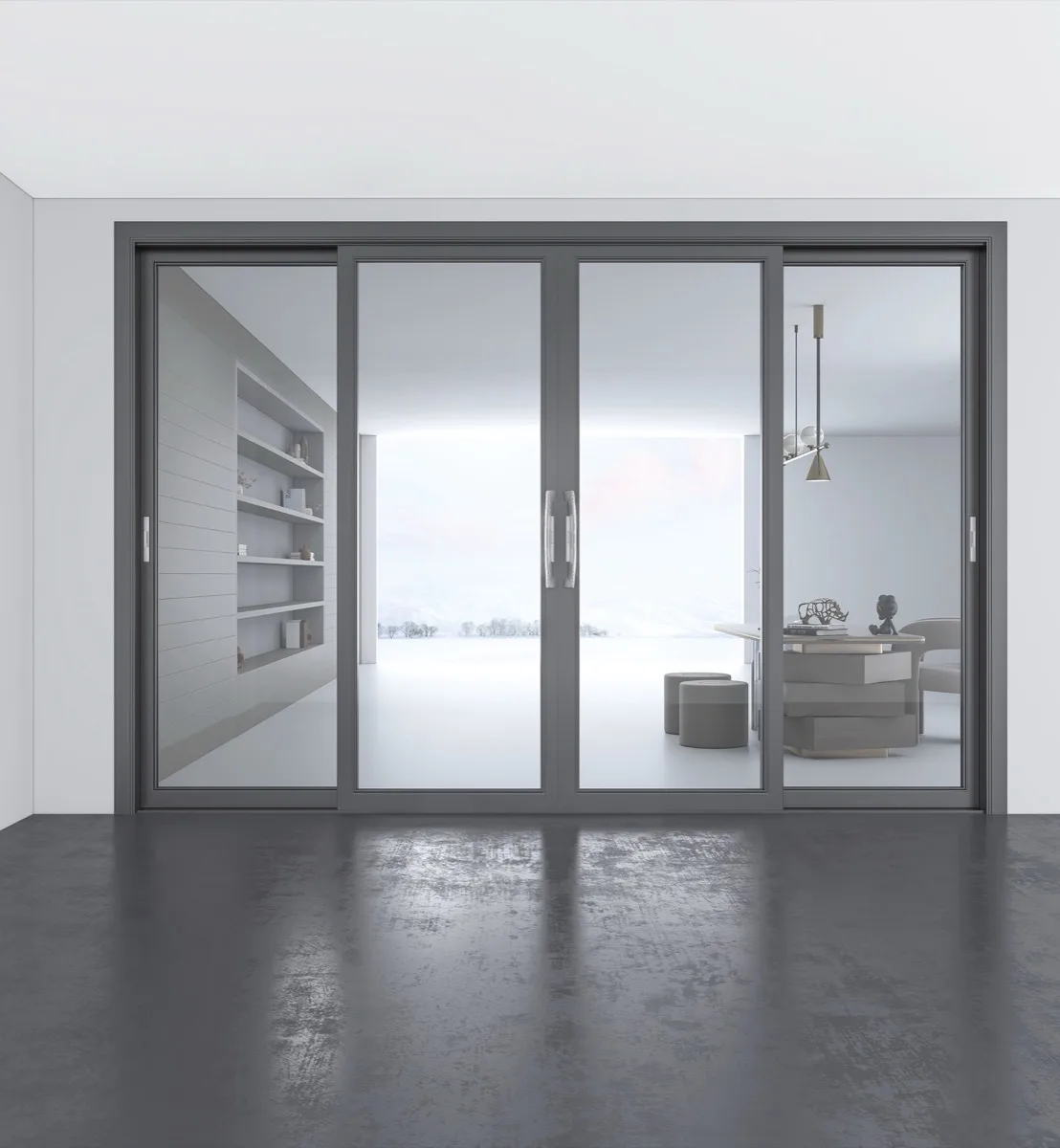

AP187 88 Sliding Door.
A large-panel sliding door with a 196.8mm profile depth, designed for bigger openings where maximum glass area is essential. Accommodates glazing up to 191mm for superior insulation. The wider 88mm sash provides additional structural support for oversized panels, making it the preferred choice for grand residential and hospitality projects.
Ключевые особенности
- Large-span design for oversized openings — ideal for villas and terraces
- Wide 88mm sash for enhanced structural support
- Optional screen mesh (transparent mesh / stainless steel mesh)
- High/low track options available
- Optional anti-theft lock system
- 6063-T5 aluminum alloy with PPG powder coating
- PA66GF25 thermal break technology
- EPDM compound foam sealing strips
- Novabes roller system and Bao Ma lock
Технические характеристики.
| Profile Depth | 196.8 mm |
|---|---|
| Max Glass | ≤ 191 mm |
| Sash Width | 88 mm |
| Aluminum Alloy | 6063-T5 |
| Thermal Break | PA66GF25 |
| Hardware | 304 Stainless Steel |
Характеристики являются справочными и зависят от конфигурации. До заказа запросите актуальный технический лист и BOM.
